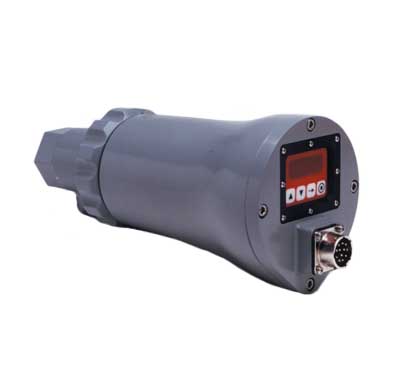

InSight 95DSS2 UV & IR Flame Scanners
The Fireye InSight® Type 95DSS2 flame scanners are microprocessor-based flame scanners utilizing solid-state dual (IR and UV) sensors.
- MF-00-2-000F-0-007-B – Coal Fired Power Stations
- MF-00-2-000F-0-015-C – Oil Refinery
- MF-00-2-000F-0-028-B – Sulfur Recovery Unit
- MF-00-2-000F-0-014-D – Industrial & Commercial Boiler
- MF-00-2-000F-0-027-B – Hazardous Waste Incinerator
- MF-00-2-000F-0-029-B – Municipal Solid Waste Incinerator
- MF-00-2-000F-0-044-B – Gypsum Plant
- MF-00-2-000F-0-045-B -Ammonia Plant
- MF-00-2-000F-0-046-B – Combine Cycle Power Plant
- MF-00-2-000F-0-016-C – Cement Kilns
- MF-00-2-000F-0-031-C – FLNG
- MF-00-2-000F-0-026-C – Steel Mills
- MF-00-2-000F-0-030-B – FPSO
- MF-00-2-000F-0-014-C – HVAC
- MF-00-2-000F-0-047-C – Black Liquor Plant
- CU-95 – Insight Type 95DSS2 Integrated Flame Scanner (English)
- UC-4851 – UC485 Optically Isolated USB to RS422 RS485 Converter (English)
- CU-96 – InSight I 59-497-XXX Scanner Cable with Connector (English)
- CU-97 – InSight I 61-694-XXX Wiring Harness (English)
- CU-95add – InSight I Reduced Temperature Operation (English)
- 133-768 – InSight to 45FS1 61-7379 Cable Adapter (English)
- 133-720 – Insight I Fiber Optics Errata Sheet (English)
- 133-692 – InSight I Scanner to Detector Electronics Fiber Optics Adapter Kit Installation (English)
- 133-752 – InSight I Scanner CEX 60-2721-X Replacement Electronics Assembly (English)
- 133-656 – InSight I Cable Connector Instruction Sheet (English)
- 133-661-InSight_I_Junction_Box_60-2771_(English)_2013-05-01
- 133-769 – InSight I 59-547-1001 PLTC-ER Rated Cable (English)
The Fireye InSight Type 95DSS2 flame scanners incorporate an internal flame relay with adjustable ON/OFF thresholds, thereby eliminating the need for a remote flame amplifier. All Fireye inSight scanner models are powered by 24 Vdc, have either a twelve-pin electrical quick disconnect or 10 ft. cable (“CG” models), and contain electronic self-checking (no mechanical shutter required). The scanners contain an eight-character alpha-numeric LED display and a four push-button keypad to enable the user to view operating parameters and select setpoints.
The following models of Insight I are effectively obsolete as of 2/5/2020.
| Original Part Designation | Recommended Replacement Part |
| 95UVS1-1 (all versions including E’s) | 95UVS4-1WINC |
| 95UVS1-1CG (all versions including E’s) | 95UVS4-1WINC with associated cable |
| 95IRS1-1 (all versions including E’s) | 95IRS4-1WINC |
| 95IRS1-1CG (all versions including E’s) | 95IRS4-1WINC with associated cable |
| 95UVS2-1 (all versions including E’s) | 95UVS4-1WINC |
| 95UVS2-1CG (all versions including E’s) | 95UVS4-1WINC with associated cable |
| 95IRS2-1 (all versions including E’s) | 95IRS4-1WINC |
| 95IRS2-1CG (all versions including E’s) | 95IRS4-1WINC with associated cable |
| 95UVS2-1CEX (all versions including E’s) | 95UVS4-1CEX |
| 95IRS1-1CEX (all versions including E’s) | 95IRS4-1CEX |
