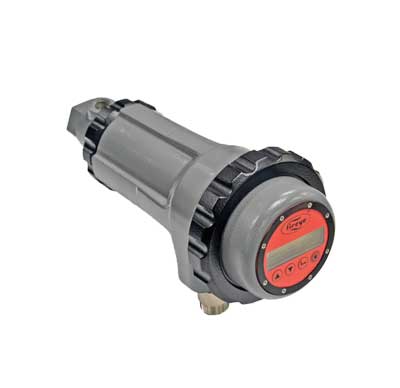

InSight II 95DSS3 UV & IR Flame Scanner
The Fireye InSight® II Type 95DSS3 flame scanners are microprocessor-based flame scanners utilizing solid-state infrared (IR) and ultraviolet (UV) sensors.
- MF-00-2-000F-0-007-B – Coal Fired Power Stations
- MF-00-2-000F-0-015-C – Oil Refinery
- MF-00-2-000F-0-028-B – Sulfur Recovery Unit
- MF-00-2-000F-0-014-D – Industrial & Commercial Boiler
- MF-00-2-000F-0-027-B – Hazardous Waste Incinerator
- MF-00-2-000F-0-029-B – Municipal Solid Waste Incinerator
- MF-00-2-000F-0-044-B – Gypsum Plant
- MF-00-2-000F-0-045-B -Ammonia Plant
- MF-00-2-000F-0-046-B – Combine Cycle Power Plant
- MF-00-2-000F-0-016-C – Cement Kilns
- MF-00-2-000F-0-031-C – FLNG
- MF-00-2-000F-0-026-C – Steel Mills
- MF-00-2-000F-0-030-B – FPSO
- MF-00-2-000F-0-014-C – HVAC
- MF-00-2-000F-0-047-C – Black Liquor Plant
- CU-118 – 24 Volt DC Power Supply (English)
- CU-109 – Fireye Explorer Communication Software
- CU-116 – Insight II Type 95DISP-1 Display (English)
- CU-113 – Insight II Type 95DSS3 Integrated Flame Scanner (English)
- UC-4851 – UC485 Optically Isolated USB to RS422 RS485 Converter (English)
- 133-735 – 95WIHH-2 Wireless Handheld Commissioning Tool (English)
- CU-113add – InSight II Reduced Temperature Operation (English)
- 133-768 – InSight to 45FS1 61-7379 Cable Adapter (English)
- 133-749 – Cooling Cover 60-2930-1 for InSight II (English)
- CU-117 – Insight II Fiber Optics Installation Instructions (English)
- 133-758 – 60-2938-2 Insight II Replacement Electronics Assembly (English)
- TD-00-1-6000-0-001-C – InSight II Feature Update
- TD-00-8-500F-0-002-A – 129-199 WINC Connector Kit (133-798)
- TD-00-1-6000-0-002-B – Changing 95DSS3 ModBus Address Without Display
The Fireye InSight II flame scanners incorporate two internal flame relays with adjustable ON/OFF thresholds and two 4-20 mA analog outputs, thereby eliminating the need for a remote flame amplifier.
The Fireye InSight II scanners are powered by 24 VDC and have electronic self-checking. Model 95DSS3-1 has one 8-pin and one 12-pin electrical cable quick disconnect. Models 95DSS3-1CEX and -1WICEX have internal terminal blocks for cable connection. The scanners have either an attached Keypad & VFD display or an infrared transmitter for a remote handheld keypad/display.
