InSight Flame Scanners 95IR 95UV 95DS

InSight Flame Scanners 95IR_95UV_95DS

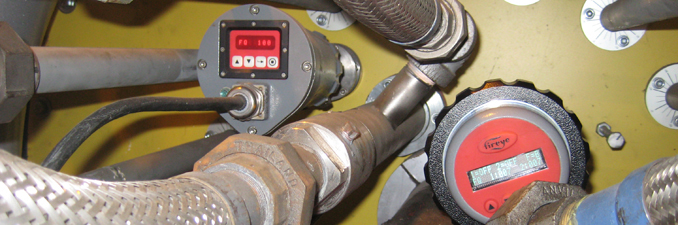

The Fireye InSight® Type 95IR, 95UV, and 95DS flame scanners are microprocessor-based flame scanners utilizing solid-state infrared (IR), ultraviolet (UV) or dual (IR and UV) sensors.

The Fireye InSight Type 95 flame scanners incorporate an internal flame relay with adjustable ON/OFF thresholds, thereby eliminating the need for a remote flame amplifier. All Fireye inSight scanner models are powered by 24 Vdc, have either a twelve-pin electrical quick disconnect or 10 ft. cable (“CG” models), and contain electronic self-checking (no mechanical shutter required). The scanners contain an eight-character alpha-numeric LED display and a four push-button keypad to enable the user to view operating parameters and select setpoints.

The following models of Insight I are effectively obsolete as of 2/5/2020.

Original Part Designation Recommended Replacement Part
95UVS1-1 (all versions including E's) 95UVS4-1WINC
95UVS1-1CG (all versions including E's) 95UVS4-1WINC with associated cable
95IRS1-1 (all versions including E's) 95IRS4-1WINC
95IRS1-1CG (all versions including E's) 95IRS4-1WINC with associated cable
95UVS2-1 (all versions including E's) 95UVS4-1WINC
95UVS2-1CG (all versions including E's) 95UVS4-1WINC with associated cable
95IRS2-1 (all versions including E's) 95IRS4-1WINC
95IRS2-1CG (all versions including E's) 95IRS4-1WINC with associated cable
95UVS2-1CEX (all versions including E's) 95UVS4-1CEX
95IRS1-1CEX (all versions including E's) 95IRS4-1CEX
