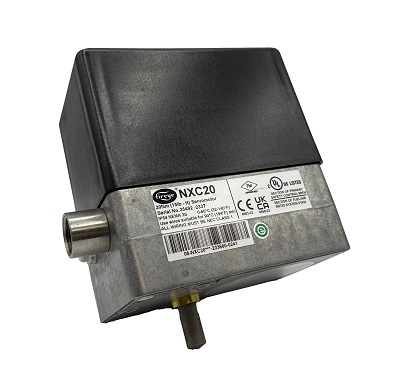

NXC Series Servos
The Fireye NXC series servo motors (NXC04, NXC12, NXC20, and NXC40) are designed to interface seamlessly with the NX6100 CANbus system. These motors are known for their fast response times, reliable performance, and various operating characteristics.
Performance Specifications:
- Speed: 30 seconds for 90 degrees rotation.
- Microswitches: Open & Close positions.
Torque:
| Model | Driving Torque | Holding Torque |
| NXC04 | 4 Nm (3 ft/lb) | 2 Nm |
| NXC12 | 12 Nm (9 ft/lb) | 18 Nm |
| NXC20 | 20 Nm (14.7 ft/lb) | 18 Nm |
| NXC40 | 40 Nm (29 ft/lb) | 20 Nm |
Voltage
24-30 Vac, supplied from control unit.
Temperature Range
- Ordinary Location NXC04: 0 to 60°C (32 to 140°F), IP40, NEMA 1
- NXC12: 0 to 60°C (32 to 140°F), IP54, NEMA 3S
- NXC20: 0 to 60°C (32 to 140°F), IP54, NEMA 3S
- NXC20A: -20 to 60°C (-4 to 140°F), IP65, NEMA 4
- NXC40: -20 to 60°C (-4 to 140°F), IP65, NEMA 4
VA Rating
- NXC04: 3 VA
- NXC12: 5 VA
- NXC20: 10 VA
- NXC40: 18 VA
Protection Category
- NXC04: IP54
- NXC12, NXC20, NXC40: IP65
Accuracy
- Typical Accuracy (as per EN12067):
- ±0.1° (High Precision)
- ±0.5° (Standard Precision)
For reliable and efficient motion control, the Fireye NXC servo motors offer exceptional torque, speed, and durability, making them ideal for a wide range of industrial applications.
