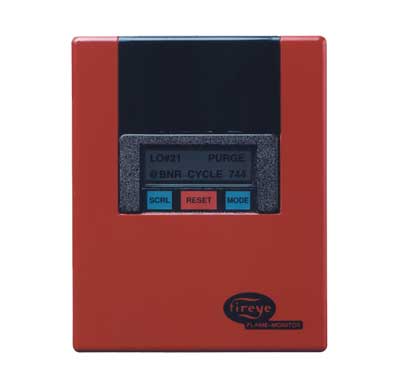

Flame-Monitor E110 Flame Safeguard
The Flame-Monitor™ Flame Safeguard Series provides the proper burner sequencing, ignition and flame monitoring protection on automatically ignited oil, gas and combination fuel burners.
- E-1101 – E110 Flame Monitor (English)
- E-1201 – E120 Flame Monitor and EB701 Chassis (English)
- EAMP1 – Flame Monitor Amplifier Modules E1R1, EUV1, ERT1, EUVS4, EDC1, EDC2 (English)
- E-3001 – Flame Monitor E300 Expansion Module (English)
- E-3201 – Flame Monitor E320 Expansion Module (English)
- EC4851 – RS232 RS485 Converter EC485 (English)
- UC-4851 – UC485 Optically Isolated USB to RS422 RS485 Converter (English)
- CP-47 – Test Unit 57AV4 (English)
- EP-1601add – Flame Monitor Programmer Modules EP177 (English)
- ED-5101 – ED510 Display Module (English)
- EP-1231 – Flame Monitor Programmer Modules EP100S, EP200S, EP300S (English)
- EP-1601 – Flame Monitor Programmer Modules EP160, EP161, EP163, EP165, EP166, EP174, EP177 (English)
- EP-2601 – Flame Monitor Programmer Modules EP260, EP265, EP270 (English)
- EP-3801 – Flame Monitor Programmer Modules EP380, EP381, EP382, EP383, EP390 (English)
- E-8002 – Flame Monitor System Accessories (English)
In conjunction with limit and operating controls, the Flame-Monitor E110 programs the burner/blower motor, ignition and fuel valves to provide for proper and safe burner operation. The control also provides current operating status and lockout information in the event of a safety shutdown.
Main Features:
- Non-Volatile memory to remember its history and present position even when power is interrupted.
- A constant flame signal read-out via the display module
- Read-out of main fuel operational hours and complete cycles via display module.
- Modbus communications via RS485 multi-drop link.
- Dipswitches located on the EP programmer to allow selectable purge time.
- A run/check switch which allows the operator to stop the program sequence
