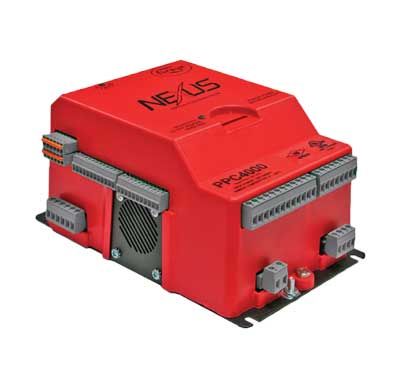

Nexus PPC4000 Parallel Positioning
The Fireye PPC4000 is a state-of-the-art parallel positioning system for all types of liquid or gaseous fuel-fired combustion systems.
- FXIATS-1 – Ambient Air Temperature Transmitter FXIATS-140 (English)
- MOD-4001 – NXF4000 and PPC4000 Modbus Communications (English)
- NXCESO2-1001 – Oxygen Probe NXCESO2 (English)
- 133-751 – Replacement NXCESO2 Oxygen Probe Cartridge NXCESO2P42-1 (English)
- NEX-3001 – FX Series Servo Motors (English)
- NXD-4102 – Touchscreen Interface NXD410TS (English)
- TSD-4001 – NXTSD507HD and NXTSD512HD Touchscreen Interface (English)
- NXF-4100 – NXF4000 and PPC4000 Fuel-Air Ratio Controllers (English)
- 133-750 – O2 Probe Mounting Flange 35-381-2 (English)
- 133-747 – Field Wireable Connector 129-192 for FX04-1 FX20-1 FX50-1 Servos (English)
- 133-763 – NXCESO2 Cooling Fan Replacement Kit 129-190 (English)
- 133-755 – Servo Connector Kit 129-194 for FX04, FX20, FX50 (English)
- S7999B – D NXD410TS Cutout Dimensions
- S7999B – D NXD410TS Cutout Template Actual Size
- TD-00-2-0500-0-009-A – Remote Firing Rate Adapter for NXF4000 and PPC4000
When combined with a Fireye flame safeguard system such as the BurnerLogix™ control, the PPC4000 offers a compact parallel positioning system.
The PPC4000 provides precise control of burner air/fuel ratio via independent motors (Parallel Positioning) along with four servo channels for positioning motors directly powered from the controller. It also provides sequencing/lead-lag control and simplified wiring via removable plug connectors. The system offers operating & logged data stored on SD card and user-programmable digital inputs.
Benefits:
- Increased Efficiency
- Reduce fuel consumption
- Reduce emissions
- Reduce downtime & maintenance
