M-Series II Amplifier Modules

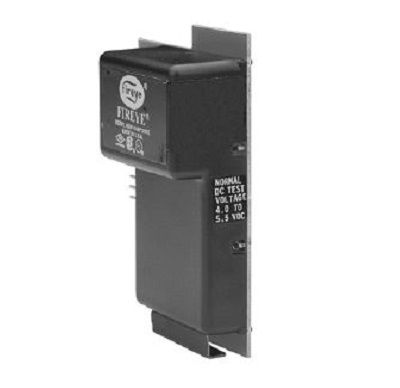

Fireye MART1, MART3, MART1T, MAUV1, MAUV3 & MAUV1T Amplifier Modules – Compatible with M-SERIES II Controls
The Fireye MART1, MART3, MART1T, MAUV1, MAUV3, and MAUV1T are advanced Amplifier Modules designed for use with the Fireye Modular M-SERIES II Control. These versatile amplifier modules are essential for flame scanning, offering compatibility with Fireye’s standard ultraviolet (UV) scanners and flame rods to ensure accurate flame detection and system performance.
Flame Scanning with Fireye Amplifier Modules
These amplifier modules work by supporting flame scanning capabilities through standard UV scanners, excluding self-check scanners. They are specifically designed to provide accurate and reliable flame detection in burner management systems, ensuring optimal operational performance and safety.
Amplifier Module Options & Their Features
The Fireye amplifier modules are available in various configurations to meet different Flame Failure Response Time (F.F.R.T.) requirements. The selection of the appropriate amplifier module is critical, as it determines the system’s F.F.R.T. for accurate flame detection and response times.
Here’s a breakdown of the available models and their compatible scanners:
| Part Number | Description | Compatible Scanner Models |
| MAUV1 | UV amplifier, 2-4 second F.F.R.T. | UV1A, UV2, UV8A, 45UV3-1050 |
| MAUV3 | UV amplifier, 3 second F.F.R.T. | UV1A, UV2, UV8A, 45UV3-1050 |
| MAUV1T | UV amplifier, .8 second F.F.R.T. | UV1A, UV2, UV8A, 45UV3-1050 |
| MART1 | Flame rectification amplifier, 2-4 second F.F.R.T. | 69ND1 |
| MART3 | Flame rectification amplifier, 3 second F.F.R.T. | 69ND1 |
| MART1T | Flame rectification amplifier, .8 second F.F.R.T. | 69ND1 |
Key Features & Benefits:
- Test Jacks for Signal Measurement: Each amplifier module includes test jacks that allow users to measure the flame signal during operation, making system diagnostics and maintenance easier.
- Plug-in Design for Easy Installation: Designed with a user-friendly plug-in format, these modules are quick to install and replace, saving time during setup or maintenance.
- Determines Operational Characteristics: The programmer module paired with the M-SERIES II chassis controls features key operational settings like relight and purge timing for streamlined system management.
Selecting the Right Module:
Choosing the correct amplifier module depends on the type of system and the desired F.F.R.T. (Flame Failure Response Time). Proper selection ensures compatibility with your UV scanner or flame rods while optimizing system performance.
Ensure your Fireye Modular M-SERIES II control system operates at peak performance by selecting the right MART1, MART3, MART1T, MAUV1, MAUV3, or MAUV1T amplifier module. These advanced, reliable, and easy-to-install modules are integral to maintaining safe and efficient flame detection in any application.
