Solid State Series D Amplifiers

Solid State Series D Amplifiers

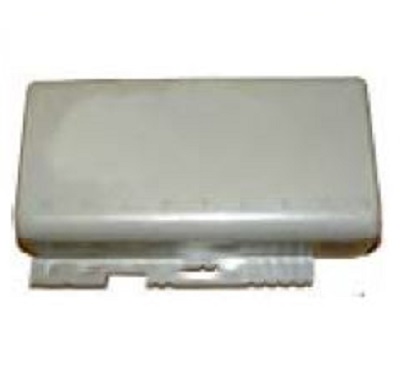

Fireye Solid State Series D Amplifiers are plug-in modules used in conjunction with Type 70D10, 70D20, 70D30, 70D40, and 70D41 burner management controls.


Standard Series D Amplifiers have a 4-second (max.) flame failure response. Special models with the suffix “T” are available with a 1-second (max) flame failure response.

Complete description, installation, and servicing instructions are included in the 70D series control bulletin.

Amplifier Modules

Amplifier Module #Type of Flame DetectionFlame Scanner
72DUV1Ultraviolet (UV)UV2, UV1A3-6, UV1B6, 45UV3
72DUVS4Ultraviolet-Selfcheck (UVSC)45UV5-1009
72D1R1Infrared-Autocheck (IR)48PT2
72D1R3Infrared-Autocheck (IR) (Solid Fuel Applications only)48PT2
72DRT1Rectification (RT)69ND1-ROD, 45CM1-Photocell

Control Types

Control TypeBulletin Number
70D40D-4041
70D41D-4041
