25SU3 Surface Mount Wiring Rack

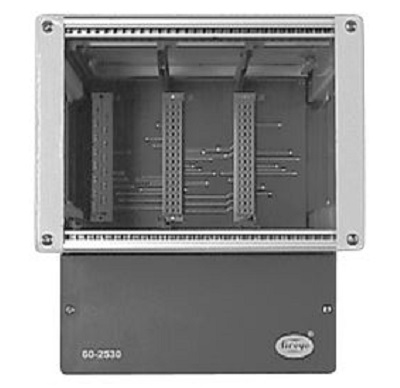

60-2530 Surface Mount Wiring Rack for Amplifier Systems 25SU3-2100 or 25SU3-2000
The 60-2530 wiring rack is a versatile, surface-mount solution designed to accommodate Fireye amplifier and power supply systems. Engineered for compatibility with the 25SU3-2100 (or 25SU3-2000) amplifier, this rack provides a streamlined, efficient setup for burner control applications.
Key Features of the 60-2530 Wiring Rack:
- Dual Amplifier Capacity: Holds up to two (2) 25SU3-2100 amplifiers for enhanced system functionality.
- Integrated Power Supply Support: Includes space for one (1) 19MPS-2000 multi-purpose power supply, which powers the amplifiers and flame scanners.
- Flexible Power Input: The 19MPS-2000 operates on either 120 VAC or 220 VAC, ensuring adaptability to different electrical environments.
- Supports Multiple Flame Scanners: Powers up to four (4) flame scanners, either low voltage (e.g., 45RM4, 45FS1, 45UVFS1) or line voltage (e.g., 45RM1, 45RM2, 45UV5) in any combination.
- For detailed specifications and installation guidelines, refer to bulletin CU-45 for the 19MPS-2000 power supply.
Agency Approvals:
- FM Approved
- CSA Approved (Note: For CSA approval, the 60-2530 must be mounted in a CSA-approved cabinet.)
The 60-2530 surface mount wiring rack is the ideal solution for managing Fireye amplifier and power supply systems, offering reliability, flexibility, and compliance with stringent safety standards.
