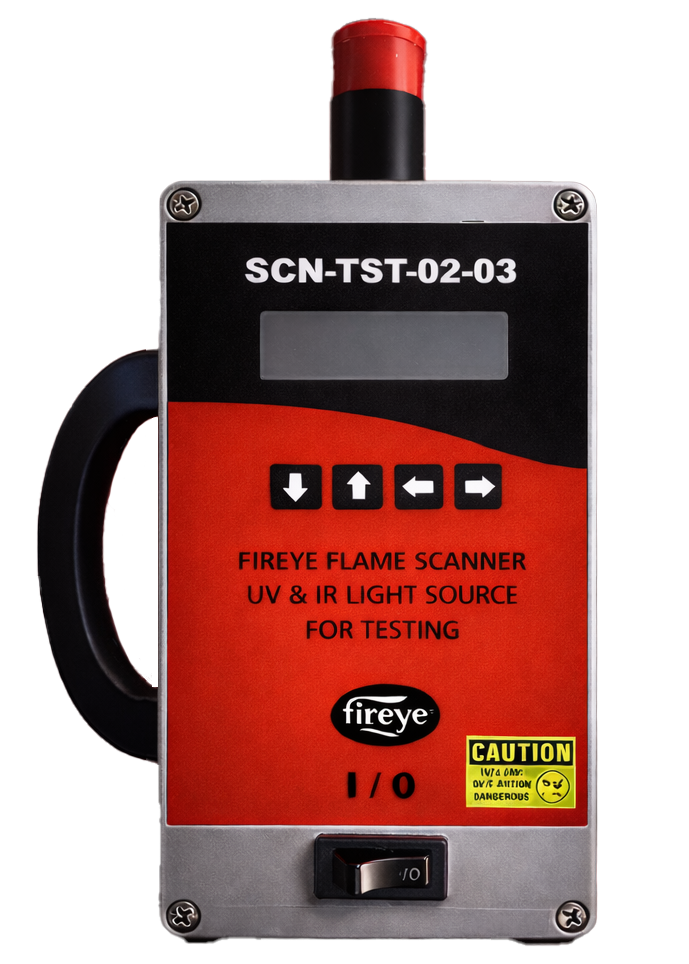

SCN-TST-02-03 Flame Scanner Tester
Used to test Fireye Paragon, Phoenix, and InSight Flame Scanners
Reliable Flame Detection Testing — Anywhere, Anytime
The Scanner Tester is a professional‑grade solution for testing Fireye flame detectors and integrated flame scanners without the need for a live burner. By accurately simulating both infrared (IR) and ultraviolet (UV) radiation found in real burner flames, it enables safe, precise verification during commissioning, maintenance, and troubleshooting.
Designed for both field and workshop use, the Scanner Tester combines portability, robust construction, and advanced diagnostic capabilities in a single, easy‑to‑use device.
Key Capabilities
Realistic Flame Simulation
The Scanner Tester reproduces authentic burner flame characteristics, allowing users to:
Simulate IR and UV radiation
Adjust flicker frequencies to match different burner flame behaviors
This ensures flame scanners are tested under conditions that closely mirror actual operation.
Complete System Verification
The device supports thorough testing of flame detection systems by enabling:
Verification of 4–20 mA analog output from integrated flame scanners
Monitoring of flame and fault relay states directly on the tester’s display
Measurement of flame relay switch‑on time and release time
These functions provide fast, accurate confirmation of system performance and reliability.
Flexible Power & Operating Modes
The Scanner Tester offers two operating modes to suit any application:
Battery Operation
Powered by a 9 V block battery
Ideal for mobile, on-site testing
Flame scanner is powered by the external plant supply
Mains Operation
Integrated 24 VDC supply for the flame scanner
Supplied via the side terminal strip
Supports 100–230 VAC, 50/60 Hz input for global use
Rugged, Field‑Ready Design
Built for demanding industrial environments, the Scanner Tester features:
Glass fiber‑reinforced polyester housing
1-inch double pipe nipple with external thread for secure system mounting
12-pin terminal strip for flexible wiring options
Integrated carrying handle for easy transport
Intuitive User Interface
For fast setup and clear diagnostics, the device includes:
Two-line, backlit alphanumeric LCD display
Four-key keypad for simple operation
On-screen indication of fault and flame relay status
Side-mounted IEC power socket
Ideal Applications
Flame detector commissioning
Routine system maintenance
Troubleshooting and fault analysis
Training and functional verification
