Phoenix Series 2 85UV & 85IR Flame Scanners
The Fireye Phoenix Series 2 85UV & 85IR flame scanners are microprocessor-based devices utilizing a solid-state flame detection sensor.
- MF-00-2-000F-0-007-B – Coal Fired Power Stations
- MF-00-2-000F-0-015-C – Oil Refinery
- MF-00-2-000F-0-028-B – Sulfur Recovery Unit
- MF-00-2-000F-0-014-D – Industrial & Commercial Boiler
- MF-00-2-000F-0-027-B – Hazardous Waste Incinerator
- MF-00-2-000F-0-029-B – Municipal Solid Waste Incinerator
- MF-00-2-000F-0-016-C – Cement Kilns
- MF-00-2-000F-0-031-C – FLNG
- MF-00-2-000F-0-026-C – Steel Mills
- MF-00-2-000F-0-030-B – FPSO

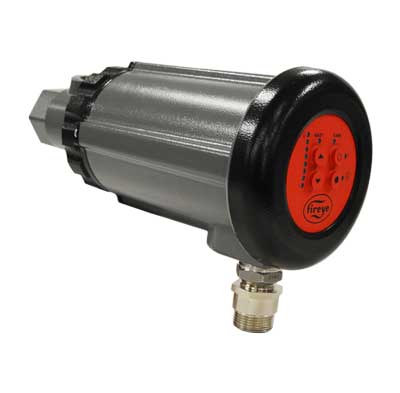

The Fireye Phoenix Series 2 85UVF/IRF flame scanners are advanced, microprocessor-based devices featuring solid-state ultraviolet (UV) or infrared (IR) sensors for precise and reliable flame detection. Engineered for high performance, these scanners include an internal flame relay with auto-adjusting ON/OFF thresholds, eliminating the need for external flame amplifiers or switches.
Advanced Flame Detection Technology
Phoenix flame scanners are designed to monitor flame flicker modulations across a wide frequency range. During setup, the scanner automatically records the modulation amplitudes of the target flame and determines the optimum ON/OFF thresholds. It also auto-selects the appropriate sensor gain for enhanced accuracy. The system integrates full self-diagnostics and electronic self-checking for increased safety and reduced maintenance downtime.
Key Features of the 85UVF/IRF Flame Scanners:
- Solid-state dual UV or IR sensors
- Integrated flame and fault relays
- 4-20mA analog outputs
- Quick 8-pin electrical disconnect (QD)
- Supports both automatic and manual configuration
- SIL 3 certified for safety integrity
Customizable Options:
- K3 Option: Extended UV range up to 500nm
- Remote Communication: Allows remote programming and monitoring
- Certified Versions: ATEX / IECEx Exd IIC T6 certified models
- Marine-Grade Options: Durable stainless-steel versions for harsh environments
- Fiber-Optic Compatibility: Enhanced flexibility in installation
Applications for Phoenix Flame Scanners:
- Duct Burners
- Industrial Gas Burners
- Refinery Applications
- Low NOx Burners
- Waste Gas Units
- Incinerators
Optimize Your Combustion Systems
The Phoenix Series 2 85UVF/IRF flame scanners provide superior reliability, advanced technology, and versatile options for various industrial applications. Their robust design ensures compliance with safety standards while delivering peak performance in demanding environments.
